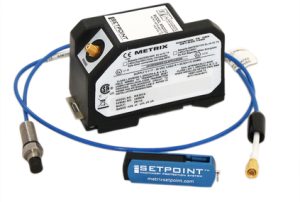

The SETPOINT Digital Proximity System digital driver is an API670-compliant shaft vibration measurement system that is fully programmable to adapt to a large number of existing proximity probes.
For the first time in this type of device, users have the ability to field program their proximity transducer for a wide range of probe diameters, from different manufacturers, with different cable lengths, shaft materials and linear range.
This driver offers compatibility with the well-known Bently Nevada brand proximitors, even with the obsolete models of this brand. SETPOINT DPS is compatible with 3000, 3300, 3300XL, 7200, RAM and NSV series probes and extension cables.
The modules are available in transmitter version (with 4-20 mA output) and with dynamic signal output for two-wire or three-wire probes.

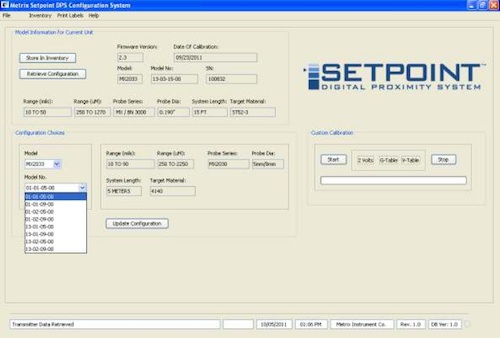

Application for DPS configuration.
Specifications
MX2033 3-Wire Probe Driver: Dynamic Voltage Output (mV/mm or mV/mil) The MX2033 signal output is compatible with industry-standard continuous vibra on monitoring systems (including the SETPOINT2 Machinery Protect on System) and is in the format specified in API Standard 670. It uses -24Vdc excita on and provides the output signal in mV/mm, typically 7.87 mV/mm (200mV/mil).
MX2034 4-20 mA Transmitter: 4-20 milliamp Current Output (mA/mm or mA/mil) The MX2034 signal output provides thrust, radial vibra on, or sha speed measurements directly to PLCs, DCSs, SCADA systems, or other instrumenta on that accepts an ISA- standard 4-20 mA signal, without the use of a separate monitor system. The transmi er is powered by +24 Vdc, supplied by the current loop. The device is user-configurable to function as a radial vibra on transmitter (where the 4-20 mA signal is proportional to peak-peak vibra on amplitude), as an axial position transmitter (where the 4-20 mA signal is proportional to average probe gap), or as a tachometer (where the 4-20 mA signal is proportional to sha speed). A short-circuit protected BNC connector provides convenient access to the raw vibra on signal when connecting to signal analyzers, portable data collectors and test instrumenta on.
Accessories:
– MX8030 Probe
– MX8031 Extension cable
– MX2030 Probe
– MX2031 Extension cable
– 100527 DPS user label kit
– 9647 DIN to 4 hole at base mounting adapter- 5497PM Reverse Probe Mount
– 5499 Heavy Duty Proximity Probe Housing
– Static Calibrator
– MX2040 Dynamic Signal Checker
