Key Features of the ALL-TEST PRO 7™ PRO

The ALL-TEST PRO 7™ PRO features a range of functions that facilitate the quick and efficient diagnosis of electric motors.

Portable design and ease of use

• Lightweight and compact design for use in any industrial setting.
• High-contrast display with an intuitive interface for easy navigation.
• Step-by-step on-screen instructions to guide the user through the testing process.

Motor Circuit Analysis (MCA™)

• Assessment of the condition of the stator, rotor, and windings of induction motors.
• Identification of short circuits, insulation problems, and mechanical failures without having to disassemble the motor.
• Rapid testing of industrial motors without the need for power.

Compatibility with different types of engines

• Diagnostics for AC and DC motors, including analysis of primary and secondary windings.
• Applicable to generators and transformers, enabling a comprehensive evaluation of the electrical system.
• Troubleshooting squirrel-cage motors and synchronous motors.

Test Value Static (TVS™) Technology

• Advanced engine analysis based on a benchmark algorithm that detects changes in engine conditions.
• Monitoring the condition of engines through repeated and comparative measurements.
• Reliable results that facilitate decision-making in predictive maintenance.

MCA Basic™ Software

It is used with three-phase and single-phase AC motors and generators.

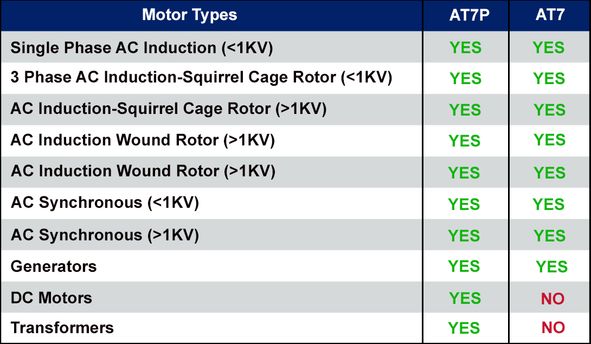

ALL-TEST PRO 7™ PROFESSIONAL and ALL-TEST PRO 7™

Benefits of Motor Circuit Analysis with ALL-TEST PRO 7™ PRO

Using the ALL-TEST PRO 7™ PRO offers key benefits for optimizing the maintenance of electric motors.

Reduced downtime

• Early detection of electrical and mechanical faults.
• Efficient maintenance planning before critical failures occur.
• Elimination of unexpected repair costs and extension of the engine’s service life.

Greater safety and reliability

• It allows for the testing of motors without powering them up, thereby reducing workplace hazards.
• Accurate diagnosis of contamination in windings and insulation failures.
• Identifying connection issues in the windings and terminals of industrial motors.

Optimization of operating efficiency

• Engine condition monitoring with the ability to store multiple measurements.
• Quick assessment in less than 3 minutes, reducing inspection times.
• It enables the implementation of predictive and corrective maintenance strategies.

Comparison of the ALL-TEST PRO 7™ PRO with other solutions on the market

The ALL-TEST PRO 7™ PRO stands out from other diagnostic tools due to its accuracy, portability, and ease of use.

ALL-TEST PRO 7™ PRO vs. Conventional Multimeters

• Advanced engine diagnostics without the need for power.
• Greater accuracy in identifying electrical and mechanical faults.
• A more comprehensive analysis compared to standard voltage and resistance measurements.

ALL-TEST PRO 7™ PRO vs. Vibration Analysis Equipment

• While vibration analysis detects mechanical faults, the ALL-TEST PRO 7™ PRO identifies electrical and mechanical problems before they become critical.
• It enables a comprehensive assessment of the electrical system, ensuring more effective maintenance.

Tips for Purchasing and Maintaining the ALL-TEST PRO 7™ PRO

To ensure optimal performance of the ALL-TEST PRO 7™ PRO, it is recommended that you follow a set of best practices regarding its purchase and maintenance.

Needs assessment prior to purchase

• Identify the types of engines and electrical systems to be diagnosed.
• Consider how often the equipment is used and the number of motors to be analyzed.
• Verify compatibility with other monitoring equipment in the industry.

Training of technical personnel

• Although the equipment is intuitive, staff training ensures optimal use.
• Access to interactive manuals and online training to improve equipment performance.

Test Equipment Maintenance

• Perform regular calibrations to ensure the accuracy of measurements.
• Keep your computer’s software up to date to take advantage of new features.
• Store in a dry, sheltered place to prevent damage to the unit.

The ALL-TEST PRO 7™ PRO is an advanced and reliable tool for diagnosing electric motors in industrial settings. Its MCA™ and TVS™ technologies, combined with its portability and ease of use, make it an effective solution for the early detection of electrical and mechanical faults. Implementing this diagnostic system ensures lower maintenance costs, reduced downtime, and greater operational reliability.
