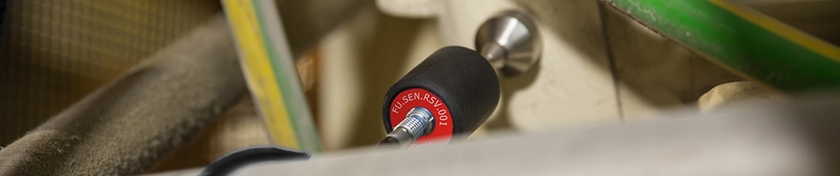

The CONMONSense range are stand-alone, permanent mount ultrasonic sensors designed to be integrated with standard industrial data acquisition systems.
CONMONSense sensors show accurate and repeatable data on the health of your assets and electrical systems in even the most challenging industrial environment.
Its piezoelectric resonant element is optimized for ultrasonic-based lubrication, mechanical fault detection and condition monitoring of valves, hydraulic/steam systems and electrical problems.
CONMONSense sensors can be used in multiple applications:
- Contact/structure (IP65) for lubrication of bearings, valves, steam traps, hydraulic systems and monitoring of rotating machinery even at very low RPM.
- Airborne (non-contact) open (IP40) and closed (IP65) sensor for electrical systems inspection.
Ultrasound is a true measure of the “FITness” of your installation. Most assets produce defects such as FRICTION, IMPACT and TURBULENCE. CONMONSense listens for these phenomena in their early stages and sends an analog signal response to your measurement system.
With an output range of 4-20mA or 0-10V, CONMONSense is permanently installed on any asset to provide continuous data.
Avoid unscheduled shutdowns and put the safety of both your plant and your colleagues first.
CONMONSense Contact Sensor
Contact/structure sensor (IP65) for continuous lubrication monitoring of bearings, valves, steam traps, hydraulic systems and rotating machinery, even at very low RPM.
CONMONSense Non-contact sensor
Open (IP65) and closed (IP40) for inspection of electrical systems.
Specifications
4-20mA / 0-10V contact sensor IP65
- Static or Dynamic Output
- Configurable internal amplification
- Non-volatile memory (used to store configuration and retrieve sensor status/mode in case of power loss)
- Hardware calibration;
- Unique ID;
- Digital I/O communication for basic use;
- Serial port communication for advanced configuration.
Technical Data
- Weight: 126 Gr
- Gain range 0 [dB] to 60 [dB].
- IP rating: 65
- Gain step 12 [dB].
- Power supply 10 [V] to 30 [V]
- M8 connector – 4 pin
- T°operation -20 [°C] to +70 [°C].
- Heterodyne frequency 38.5 [kHz] +/- 10%.
- Pinout voltage GROUND to VDD
- Bandwidth [0.25 – 4] [kHz] [kHz] [kHz
- Resonance Frequency 37 [kHz] +/- 1 [kHz].
- RMS time period 1 [sg]
4-20mA/0-10V Airborne sensor (non-contact) IP65
- Static or Dynamic Output
- Configurable internal amplification
- Non-volatile memory (used to store configuration and retrieve sensor status/mode in case of power loss)
- Hardware calibration;
- Unique ID;
- Digital I/O communication for basic use;
- Serial port communication for advanced configuration.
Technical Data
- Weight: 82 Gr
- Gain range 0 [dB] to 60 [dB].
- IP rating: 65
- Gain step 12 [dB].
- Power supply 10 [V] to 30 [V]
- M8 connector – 4 pin
- T°operating temperature -20 [°C] to +85 [°C].
- Heterodyne frequency 38.5 [kHz] +/- 10%.
- Pinout voltage GROUND to VDD
- Bandwidth [0.25 – 4] [kHz] [kHz] [kHz
- Resonance Frequency 40 [kHz] +/- 1 [kHz].
- RMS time period 1 [sg]
4-20mA/0-10V Open air sensor (no contact) IP40
- Static or Dynamic Output
- Configurable internal amplification
- Non-volatile memory (used to store configuration and retrieve sensor status/mode in case of power loss)
- Hardware calibration;
- Unique ID;
- Digital I/O communication for basic use;
- Serial port communication for advanced configuration.
Technical Data
- Weight: 82 Gr
- Gain range 0 [dB] to 60 [dB].
- IP rating: 40
- Gain step 12 [dB].
- Power supply 10 [V] to 30 [V]
- M8 connector – 4 pin
- T°operating temperature -20 [°C] to +85 [°C].
- Heterodyne frequency 38.5 [kHz] +/- 10%.
- Pinout voltage GROUND to VDD
- Bandwidth [0.25 – 4] [kHz] [kHz] [kHz
- Resonance Frequency 40 [kHz] +/- 1 [kHz].
- RMS time period 1 [sg]
Accessories
Cables with straight M8 connector
Cables with 90º M8 connector
